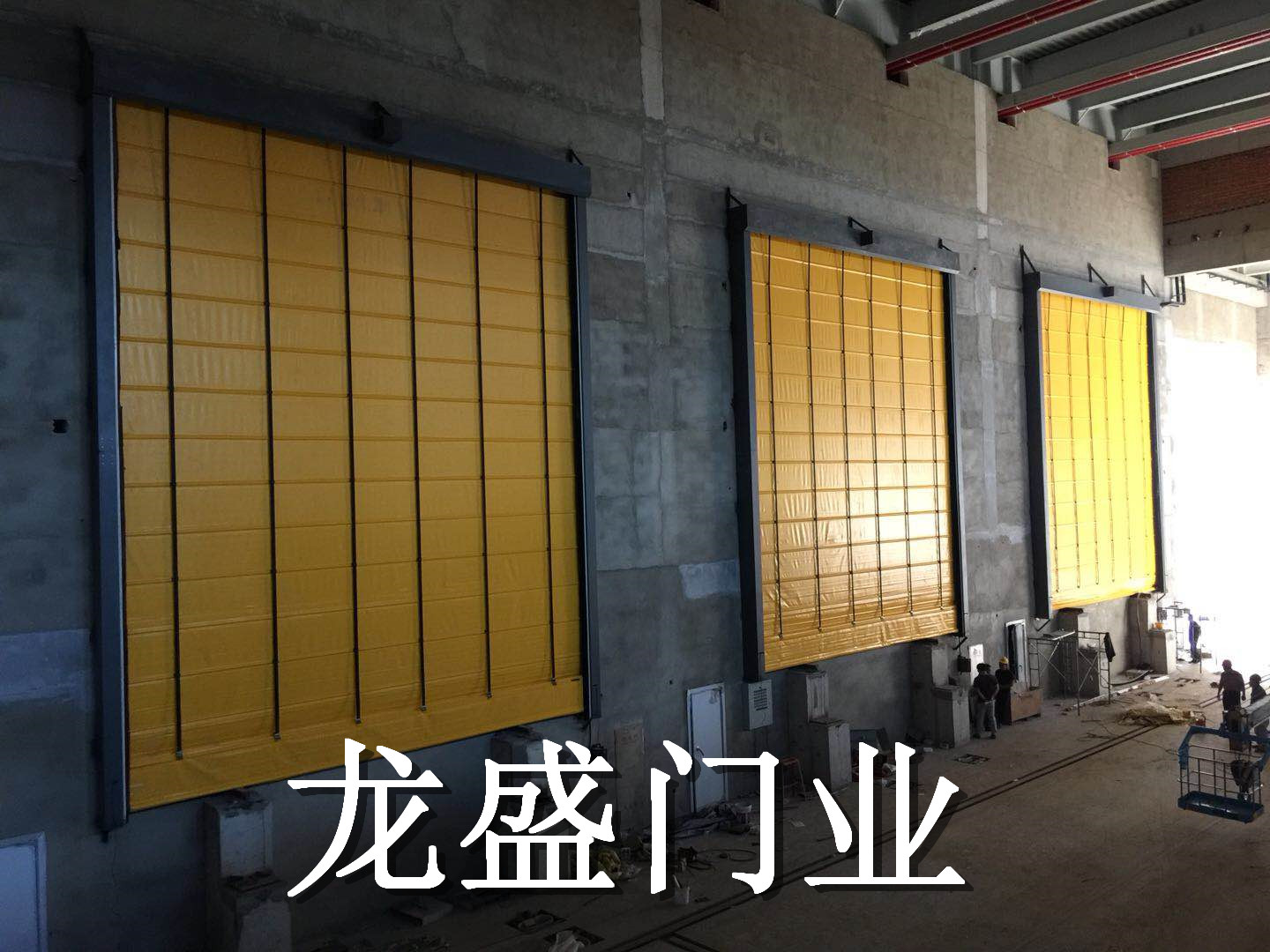

「西安快速門」堆積門紅外光電防砸安裝和調試方法


Installation and debugging method of infrared photoelectric anti-smashing for "Xi'an Express Gate" stacking door

其實，只要買過或者咨詢過快速卷簾門的客戶對我們的產物還是有所了解的，就拿快速卷簾門的控制方式來說，分為：雷達控制、紅外線、光電、手動等的控制方式，不同的控制方式適合于不同的場合，一般客戶在咨詢的時代，我們會連帶著給客戶在控制方式上進行介紹。


In fact, as long as the customers who have bought or consulted the fast shutter door know something about our products, we can take the control mode of the fast shutter door as an example, which can be divided into radar control, infrared control, photoelectric control, manual control and so on. Different control modes are suitable for different occasions. General customers are in the age of consultation. We will introduce the control methods to our customers.


接下來小編來給大家講一下快速卷簾門光電感應的安裝，好好看哦。


Next, Xiaobian will tell you about the installation of photoelectric induction of the fast rolling shutter door, take a good look.

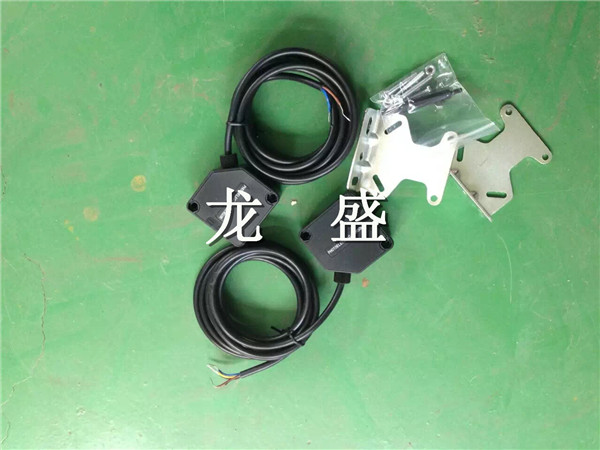

在安裝快速卷簾門光電感應系統時，要將光電發光器和反射板水平固定在快速卷簾門框兩側，然后將快速卷簾門光電感應電纜連接到電控箱接線端子，按照標號碼進行連接即可。


When installing the photoelectric induction system of the fast rolling shutter door, the photoluminescent device and the reflecting plate should be horizontally fixed on both sides of the fast rolling shutter door frame, and then the photoelectric induction cable of the fast rolling shutter door should be connected to the terminal of the electronic control box, which can be connected according to the label number.


下面講的是快速卷簾門的接線問題，當電控箱接線端子無GND接口時，可將藍線連接到G點接線口使用，在光電傳感器白線連接到G點后，快速卷簾門下落到底，光電傳感器就會有信號，物體碰到紅外線，快速卷簾門門體上升。


The following is about the wiring problem of the fast shutter door. When the terminal of the electronic control box has no GND interface, the blue wire can be connected to the G-point wiring port. After the white wire of the photoelectric sensor is connected to the G-point, the fast shutter door falls to the bottom, and the photoelectric sensor will have a signal. When the object meets the infrared ray, the door body of the fast shutter door rises.


「西安快速門」堆積門紅外光電防砸安裝和調試方法


Installation and debugging method of infrared photoelectric anti-smashing for "Xi'an Express Gate" stacking door


若光電傳感器白線連接到X6時，快速卷簾門門體下落到底后，光電傳感器無信號，物體碰到紅外線時無動作，這時說明線路接線錯誤，需立即矯正。


f the white line of photoelectric sensor is connected to X6, after the door body of the fast rolling shutter falls to the bottom, the photoelectric sensor has no signal, and the object does not move when it encounters infrared ray, this indicates that the wiring of the line is wrong and needs to be corrected immediately.

當快速卷簾門光電傳感器電纜線接通電控箱后，開啟電源，發光器指示燈會亮起，綠色燈表明光電感應器可正常使用，黃色燈時說明信號未對準，需要手動上下左右調整光電傳感器與反射板水平位置，待二者處于同一水平位置，發射器返回信號為綠燈，這時就可以正常使用。


When the cable of photoelectric sensor of fast rolling shutter door is connected to the electronic control box, the power supply is turned on, and the light-emitting indicator lights will turn on. The green light indicates that the photoelectric sensor can be used normally, and the yellow light indicates that the signal is not aligned. It is necessary to manually adjust the horizontal position of the photoelectric sensor and the reflector plate from top to bottom, so that they are in the same horizontal position. The transmitter's return signal is a green light, so it can be used normally.


在快速卷簾門光電感應器安裝實現后，為了確認其使用效果，還要對光電傳感器進行機能測試，測試時，若物體經由傳感器，光電指示燈為黃色，高速門門體上升不下降，當物體離開感應區時，光電指示燈為綠色，門體延時后自動下降。


 After the installation of the photoelectric sensor for the fast rolling shutter door is realized, in order to confirm its use effect, the function test of the photoelectric sensor is also carried out. When the object passes through the sensor, the photoelectric indicator light is yellow, and the high-speed door body does not rise or fall. When the object leaves the induction area, the photoelectric indicator light is green and the door body delays. Automatic descent.
